CK20DU solar controller pwm soalr regulator

Cate：

CK series

This series is a new generation of multi-functional and intelligent solar charge and discharge controllers. The innovative structured design makes the installation and use of the controller safer and more reliable. The optimized charge and discharge management greatly improves the service life of the battery. At the same time, the large LCD screen contains richer display content, the patterns are beautiful and easy to understand, and the streamlined display management makes the working status of the system and the corresponding parameters appear in a larger scale. A variety of control parameters can be set to meet a variety of different application requirements.

零售价

0.0

元

市场价

0.0

元

浏览量:

1000

产品编号

数量

库存:

Cate

Back



Honor

CK20DU solar controller pwm soalr regulator

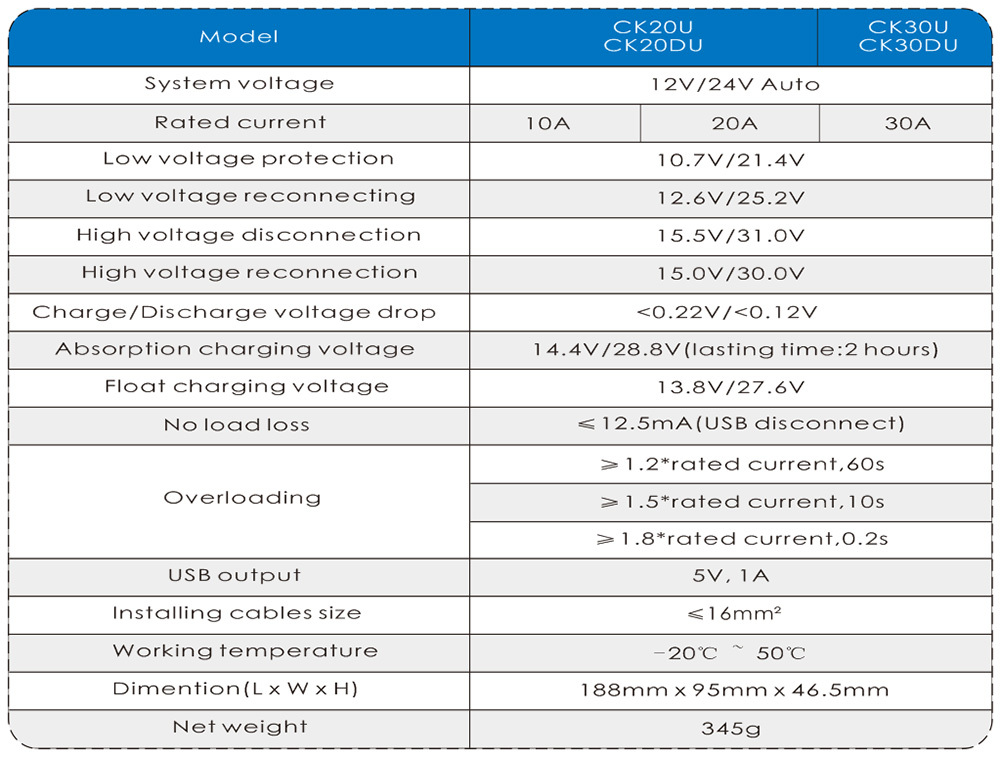

[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[产品参数, 参数]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]

Product Description

CK SERIES
INTELLIGENT SOLAR CHARGE CONTROLLER

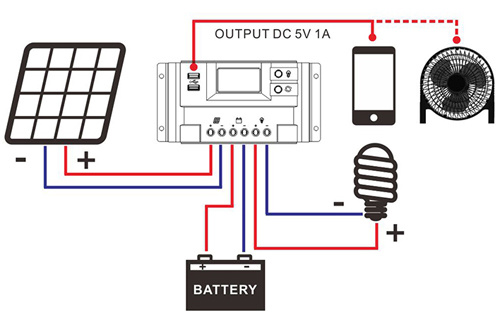

CK series solar charge controller is an extension of a classic controller.The appearance of this controller is simple and clear,little red button design makes it easy to use.The product inheriting and optimizing the classic circuit design, added USB 5V output and DC 12V output terminal,enable controller can charge cellphones and other electronic devices. Considerate solar panel,battery and load protection making this product more outstanding.

Key Features

Vivid LCD graphic symbols.
Battery reverse-discharge protection, battery low voltage disconnection(LVD), battery reverse connection protection, over-current protection.
Simple button operation makes it easy to set the operation mode of load.
PWM charging mode with 4 stages(bulk, absorption, float and equalized).
Adaptable to Sealed, GEL, Flooded and other customized battery type.
Automatic identification of system voltage level.
Adjustable charge-discharge parameters.
Automatic temperature compensation.

Electronic Protections

Over charge protection
Over discharge protection
Over temperature and over load protection
Automatic electronic fuse
Short circuit protection of load and PV
Input over voltage protection
Reverse current protection at night
Reverse connection protection of PV, load, and battery
Overheat protection and short circuit protection of USB
output

Displays

Vivid LCD graphic symbols
---presents working status and related parameters explicitly
