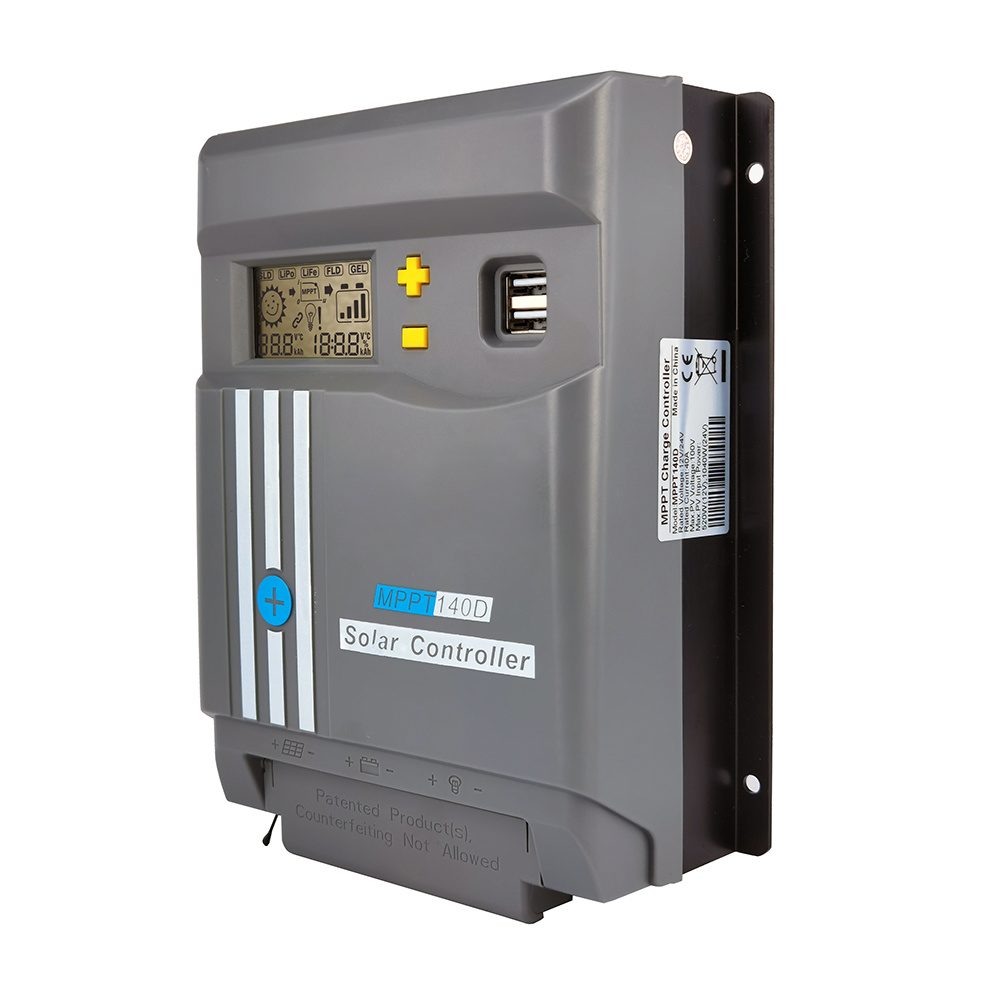

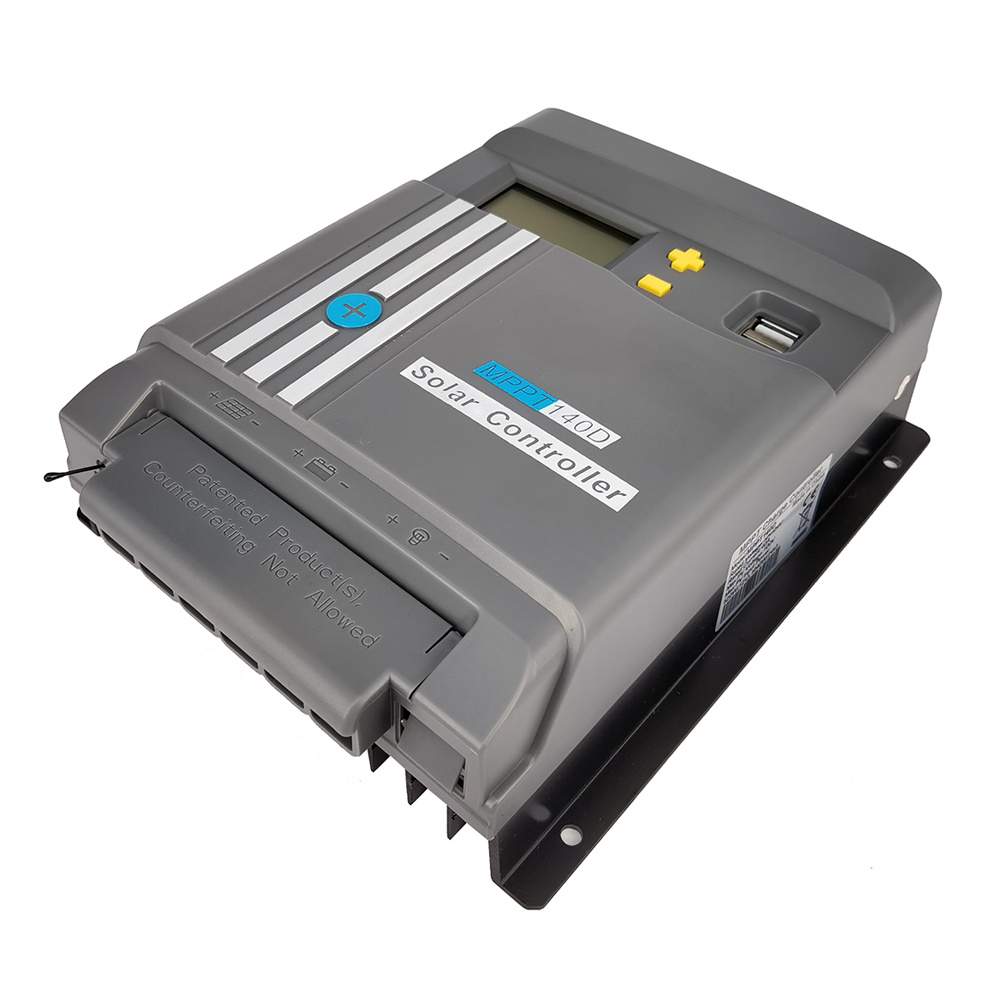

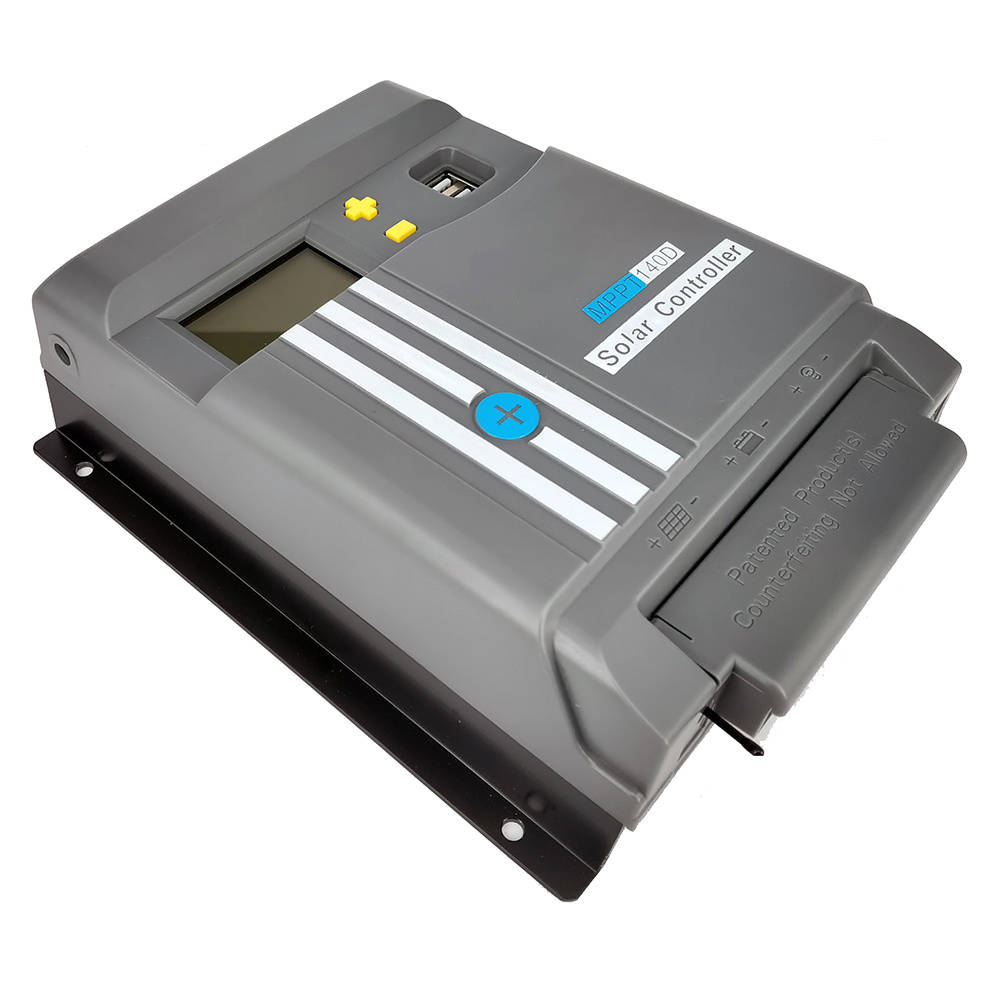

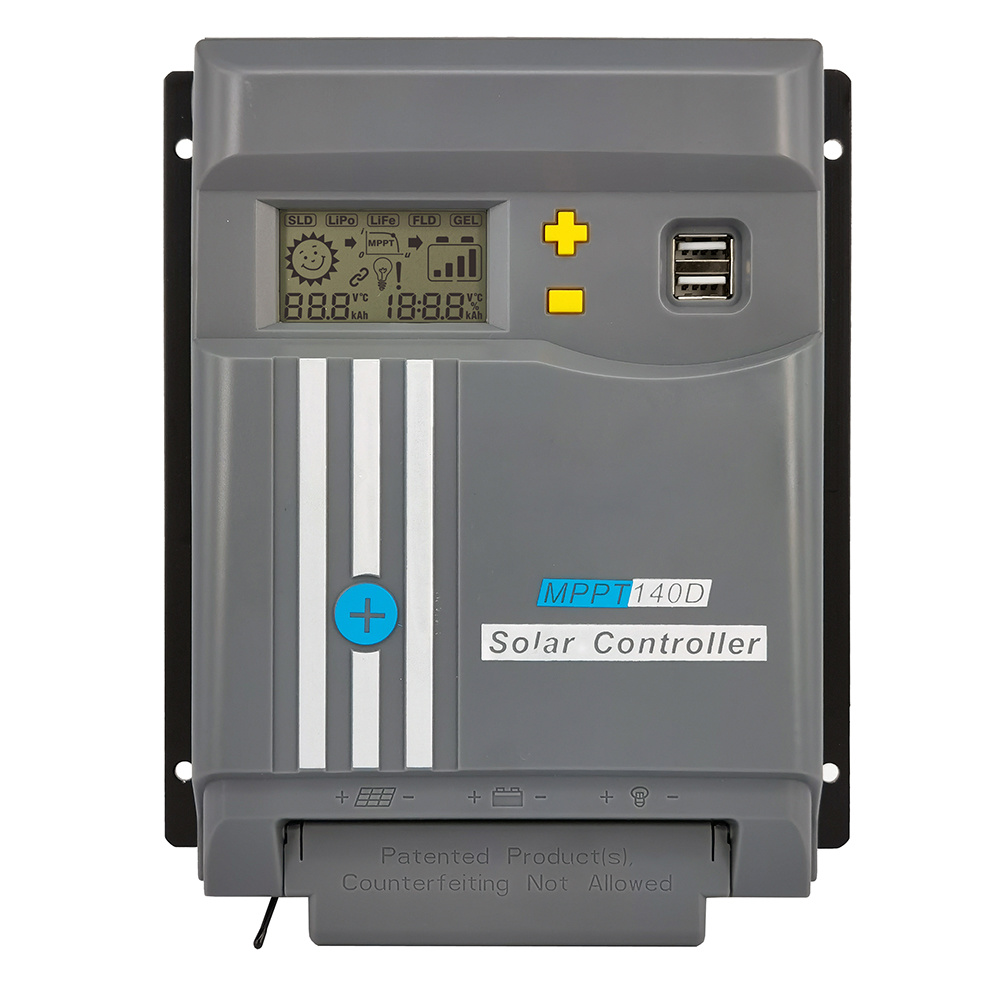

MPPT140D MPPT Controller Solar Regulator Solar Panel Charge Controller MPPT 40A 12/24V
浏览量:
1000

MPPT140D MPPT Controller Solar Regulator Solar Panel Charge Controller MPPT 40A 12/24V

This controller is a solar charge and discharge controller with MPPT function independently developed by our company. The main topology of the controller adopts the Buck conversion circuit, and the MCU is used to intelligently adjust the operating point of the solar battery pack, so that the solar battery pack can output the maximum power under the current environmental conditions. When the working point of the solar cell group deviates from the maximum power point after the environmental conditions change, the MCU of the controller adjusts the working point of the solar cell group according to the MPPT algorithm, so that the working point of the solar cell group returns to the maximum power point. Compared with ordinary solar charge controllers, MPPT controllers can generally increase the output power of the solar battery pack by 5% to 30%. The increase in output power is affected by the characteristics of the solar battery pack, temperature and light intensity. The whole machine adopts wall-mounted installation. The wiring method uses standard wiring terminals to lead, the wiring area is larger, and the line loss is smaller.
零售价
0.0
市场价
0.0
浏览量:
1000
产品编号
MPPT140D
数量
-
+
库存:
0
MPPT140D MPPT Controller Solar Regulator Solar Panel Charge Controller MPPT 40A 12/24V
[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[产品参数, 参数]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]

Product Description


MPPT1 SERIES
MAXIMUM POWER POINT TRACKING SOLAR CHARGE CONTROLLER

MPPT1 series products adopts DC/DC converting technology and MCU technology.
It can adjust the working point of the solar array intelligently to make the solar array realize the maximum power output.
When the external condition changes,MPPT controller bases on the MCU theory to track the maximum working point of solar panels,this can improve the using efficiency of the solar panels and decrease the solar generating costs.
Compared with PWM solar charge controllers,MPPT improve the output efficiency of solar panel by 5% to 30%(the output increasing proportion affected by the factors such as the attribute of solar panels, environmental temperature and lighting conditions)


Key Features


1. High efficiency MPPT charging
2. MPPT efficiency>99%, Peak conversion efficiency>98%
3. 12V/24V auto work
4. PV input:100V max Multi-stages
5. Charging mode(MPPT,Absorption,Float,Equalization)
6. USB output(5V/1A)


Product Paramenters



Details Images

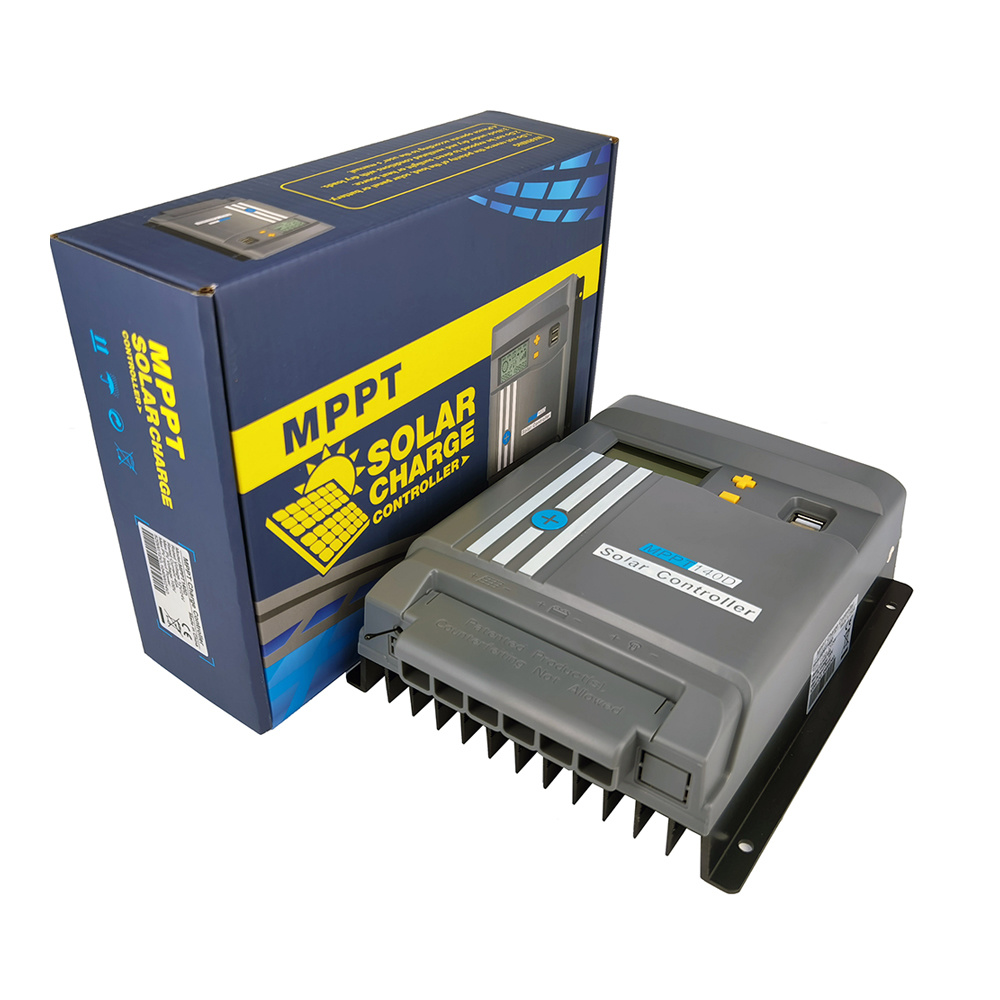

Packing & Deliver
