SK80D Intelligent Solar Controller pwm solar controller pwm regulator for solar off grid home use
This series is a new generation of multifunctional and intelligent solar charge and discharge controllers. The innovative structured design makes the controller installation and use safer and more reliable. The optimized charge and discharge management greatly improves the service life of the battery. At the same time, the large LCD display screen contains richer display content, the patterns are beautiful and easy to understand, and the streamlined display management maximizes the display of the system's working status and corresponding parameters. A variety of control parameters can be set to meet a variety of different application requirements.
Category:
Contact Us
Product Description
Product Description
SK SERIES
INTELLIGENT SOLAR CHARGE CONTROLLER
SK series is a new series of intelligent multi-purpose solar charge controllers. Its innovative design makes it easy to install and quite user-friendly. Optimized charging and discharging management extends the service life of batteries considerably.
Meanwhile, parameters are explicitly displayed. All parameter values can be set to meet various applications.
Key Features
PWM control
Multistage charging technology(bulk, absorption, float and equalized)
Most parameters displayed explicitly
Automatic detection of battery voltage
Automatic load reconnection
Automatic temperature compensation
Simple button operation
Adaptable to Sealed, Gel, Flooded and other customized battery type
Preset parameters for charging and discharging (Special parameters can be customized)
All working parameters can be adjusted and reset
Various controlling modes for load
Self-timing
Remote communication function(optinal) ---RJ45 connection port, RS232, RS485 and standard Modbus communication protocol
Electronic Protections
Over charge protection
Over discharge protection
Over temperature and over load protection
Automatic electronic fuse
Short circuit protection of load and PV
Input over voltage protection
Reverse current protection at night
Reverse connection protection of PV, load, and battery
Displays
Vivid LCD graphic symbols
Presents working status and related parameters explicitly

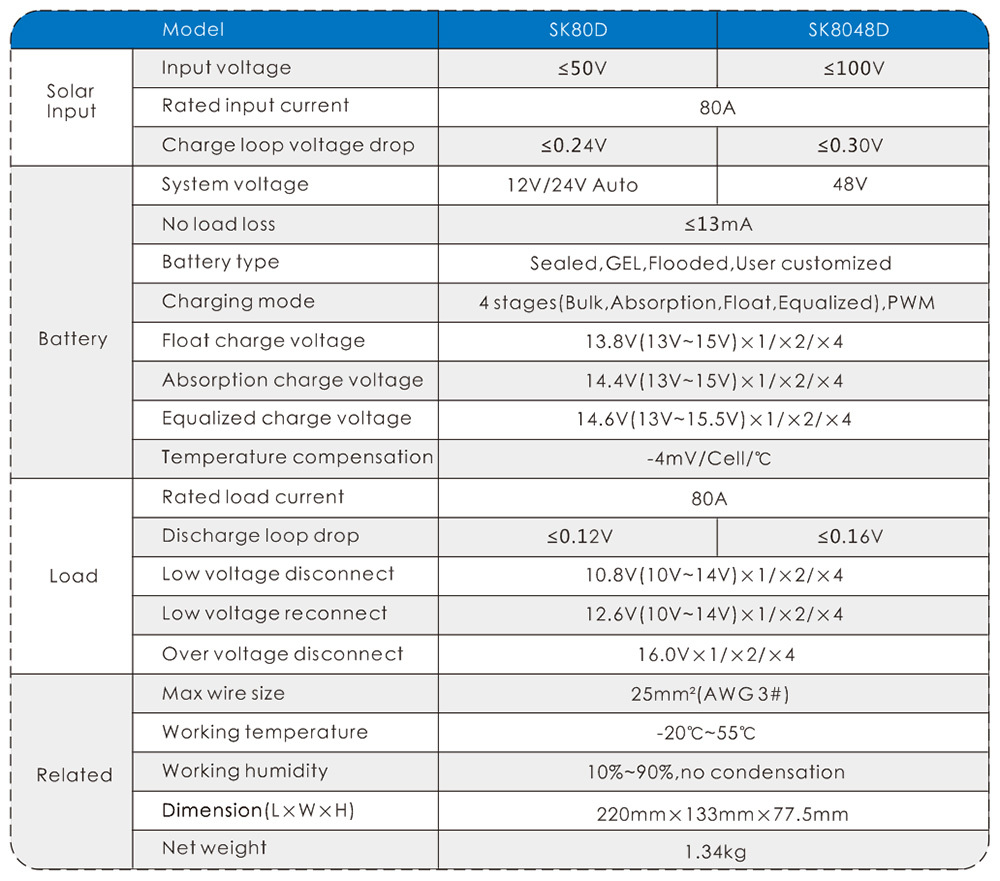

Product Paramenters
