HF210D/HF220D pwm regulator 10A 12/24V pwm solar charger for solar generator system
浏览量:
1000

HF210D/HF220D pwm regulator 10A 12/24V pwm solar charger for solar generator system

Cate:
HF2 series
HF series solar charge controller is a newly designed controller that provides portable display of LED and LCD, optimized structure design, advanced digital technology and very attractive price. Multiple load working modes make it widely used in solar home systems, traffic signal solar street lights, solar garden lights, etc.
零售价
0.0
市场价
0.0
浏览量:
1000
产品编号
HF220D
数量
-
+
库存:
0
HF210D/HF220D pwm regulator 10A 12/24V pwm solar charger for solar generator system
[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[产品参数, 参数]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]

Product Description


HF2 SERIES
INTELLIGENT SOLAR CHARGE CONTROLLER

HF2 series solar charge controller inherits the structure design of HF1 series but more exquisite. The new design of graphic display informs the user of all important system data. While meeting functional needs, it also offers user-friendly installation and operation interfaces. With a dual USB port max 5V1.2A output on each model and multiple load control modes.


Key Features


M ulti-stage PWM charging (Bulk, Float, Absorption)
Battery type selection: Sealed, Gel, Flooded and user
LCD display
Charging-Discharging parameters can be set and modified
Various control mode for load(light control,time&light control, normal mode)
Battery LVD, reverse-dicharge at night, reverse connection, overcurrent protection
Automatic detection of voltage
Temperature compensation
USB 5V/1A output, charge the electronic devices


Electronic Protections


High voltage disconnection,high voltage recovery
Low voltage disconnection,low voltage recovery
Overload protection,short circuit protection
Solar panel,battery reverse polarity protection
Reverse current protection at night
Overheat protection and short circuit protection of USB output


Displays


Vivid LCD graphic symbols
      Presents working status and related parameters explicitly

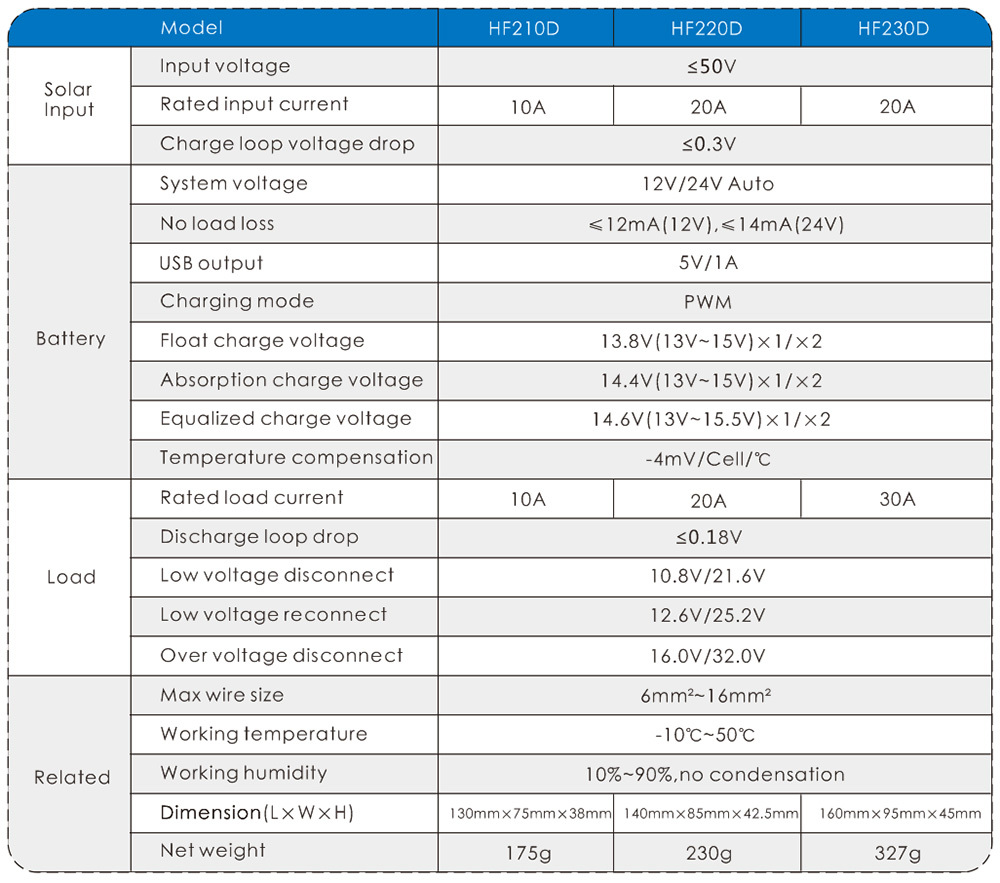

Product Paramenters


​​​​​​​
