HF210/HF220 solar charge controller LED indicator charge controller high cost performance

Cate:
HF2 series
HF series solar charge controller is a newly designed controller that provides portable display of LED and LCD, optimized structure design, advanced digital technology and very attractive price. Multiple load working modes make it widely used in solar home systems, traffic signal solar street lights, solar garden lights, etc.
零售价
0.0
市场价
0.0
浏览量:
1000
产品编号
HF220
数量
-
+
库存:
0
HF210/HF220 solar charge controller LED indicator charge controller high cost performance
[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[产品参数, 参数]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]

Product Description

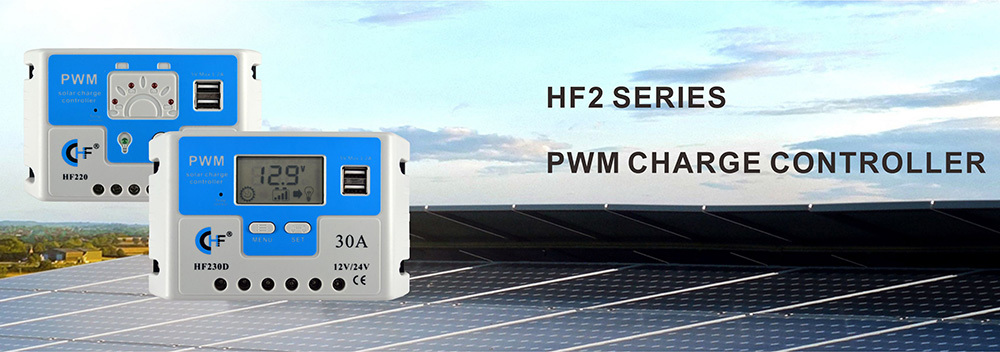

HF2 SERIES
INTELLIGENT SOLAR CHARGE CONTROLLER

HF2 series solar charge controller inherits the structure design of HF1 series but more exquisite. The new design of graphic display informs the user of all important system data. While meeting functional needs, it also offers user-friendly installation and operation interfaces. With a dual USB port max 5V1.2A output on each model and multiple load control modes.


Key Features


High efficient PWM charging
Use MOSFET as electronic switch
LED indicators indicate battery voltage state
Automatic detection of voltage
Temperature compensation
Widely used,simple operation
USB 5V/1A out put,charge the electronic devices
DC12V output


Electronic Protections


High voltage disconnection,high voltage recovery
Low voltage disconnection,low voltage recovery
Overload protection,short circuit protection
Solar panel,battery reverse polarity protection
Reverse current protection at night
Overheat protection and short circuit protection of USB output


Displays


Multi-functional LED indicators
--- 4 LEDs show system battery capacity, charging and
discharging state

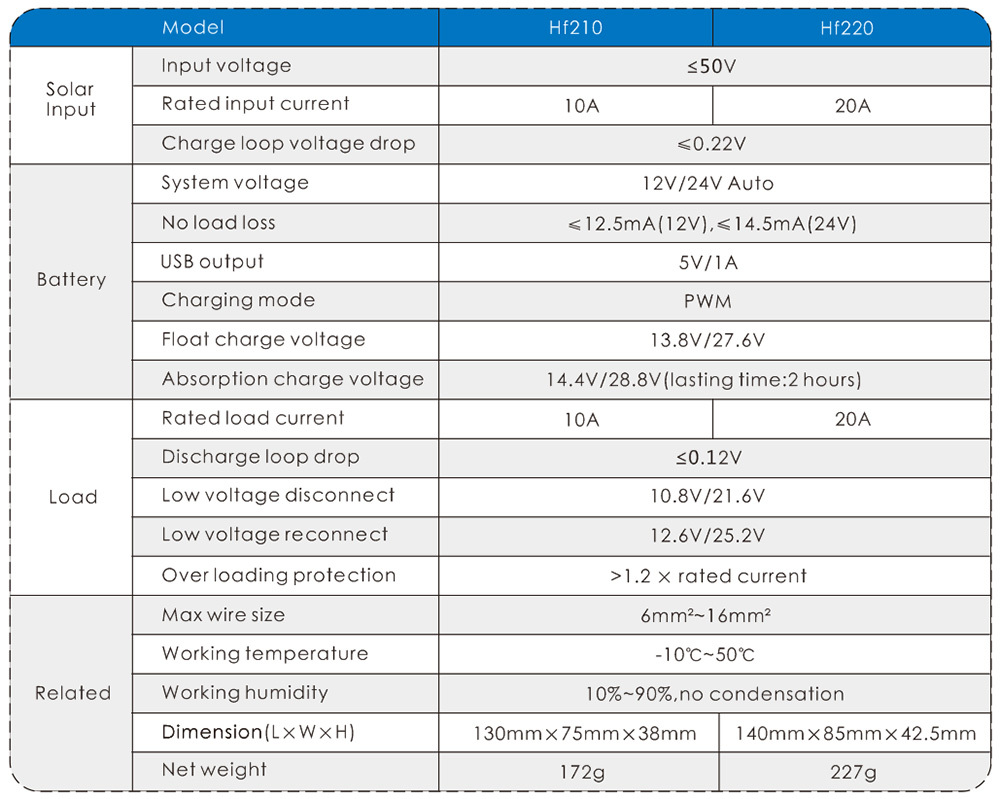

Product Paramenters



Why Choose Us



GET A QUOTE NOW !


Wilson Zhang

Sales Manager

email: Wilson@hanfsolar.com

Tel./WhatsApp/ Wechat:
+86 15307135737

www.hanfsolar.com

Keyword:
Cheap mppt solar charge controller
Best mppt solar charge controller
扫二维码用手机看
未找到相应参数组,请于后台属性模板中添加

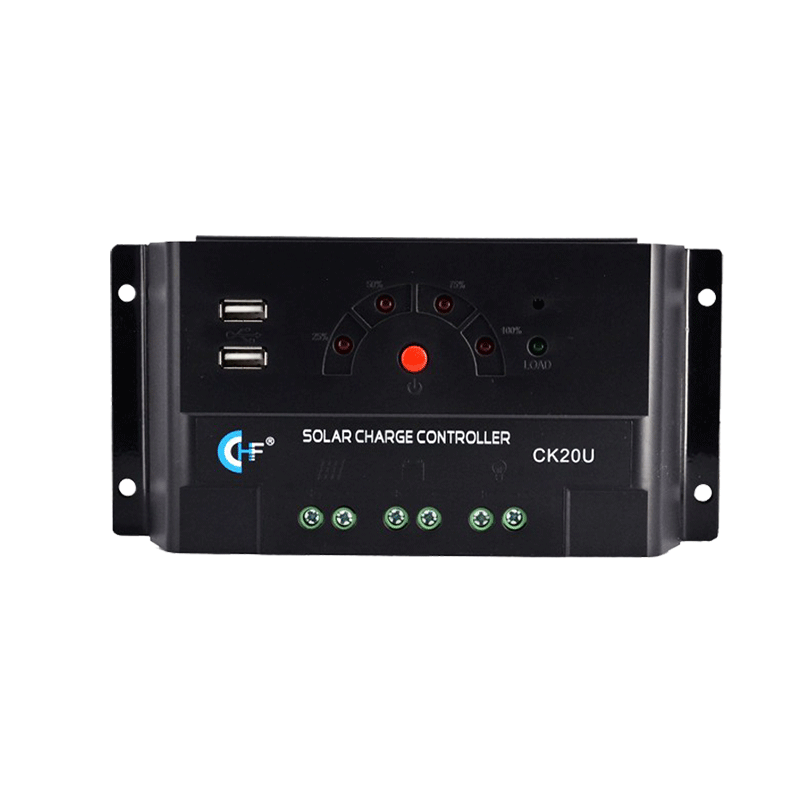

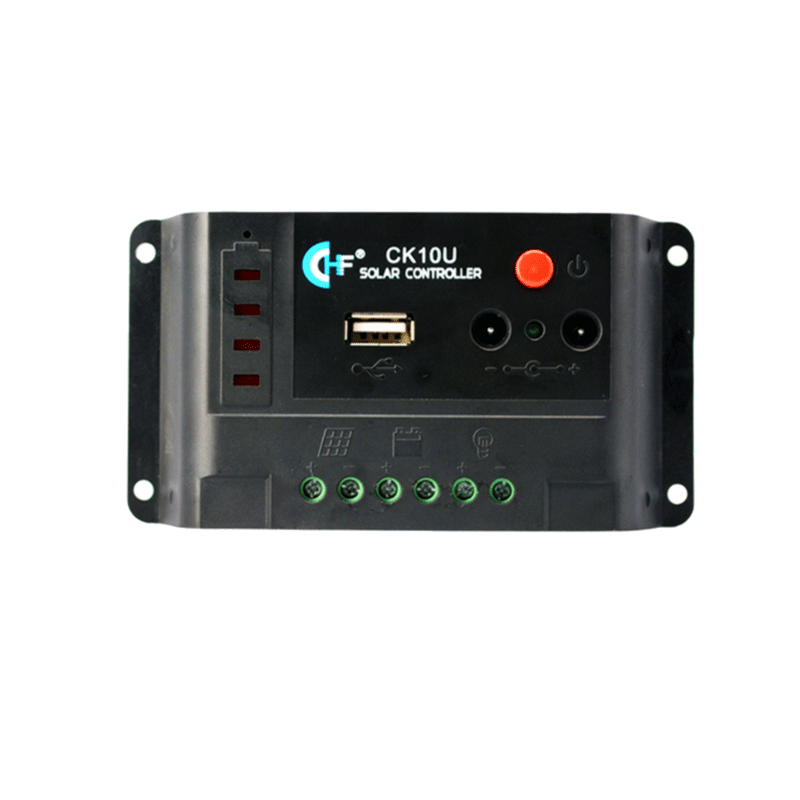

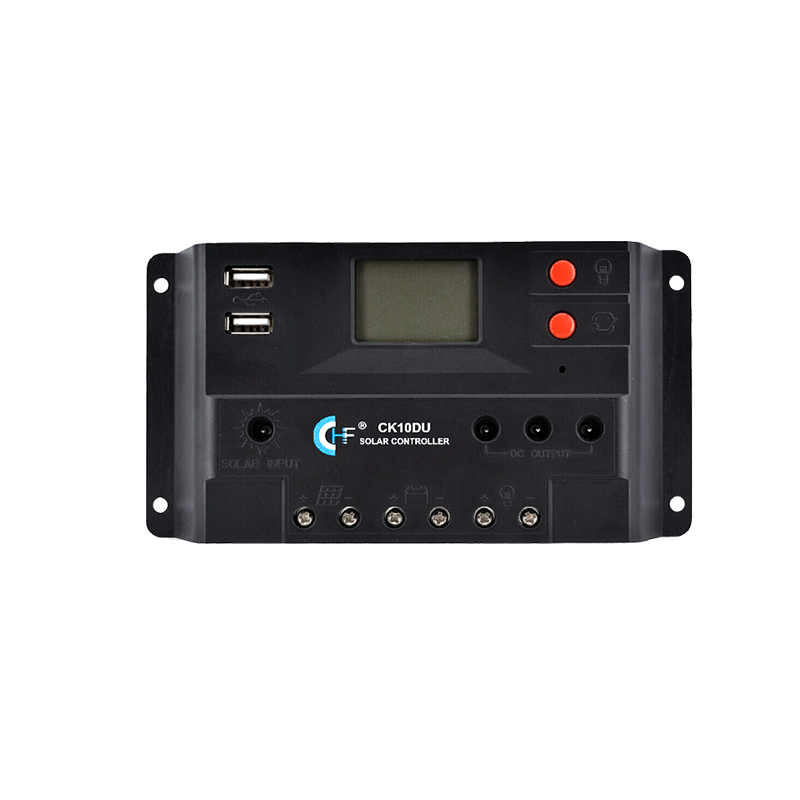

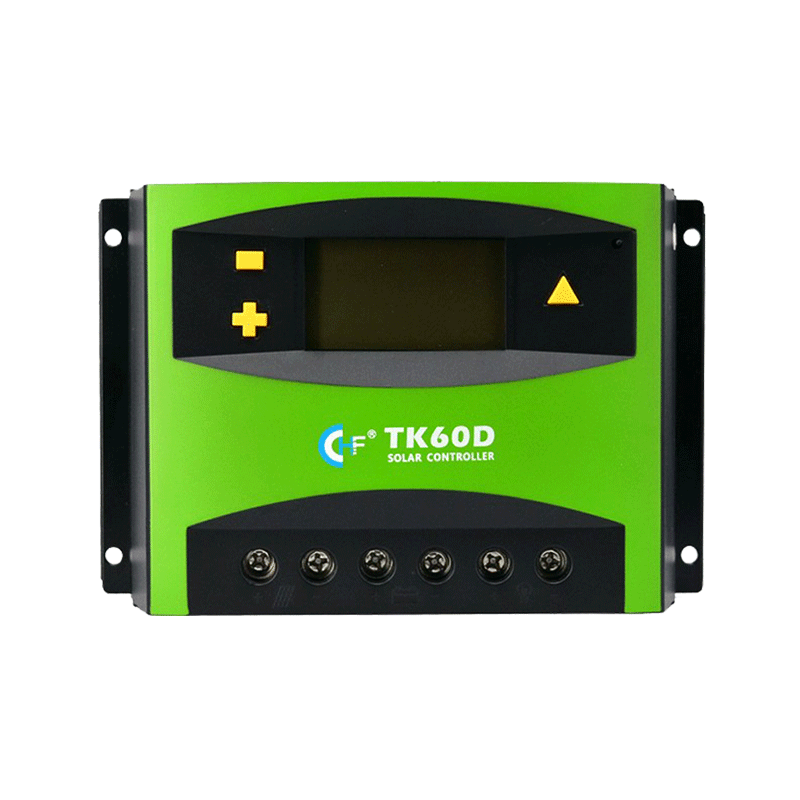

RELATED PRODUCTS
