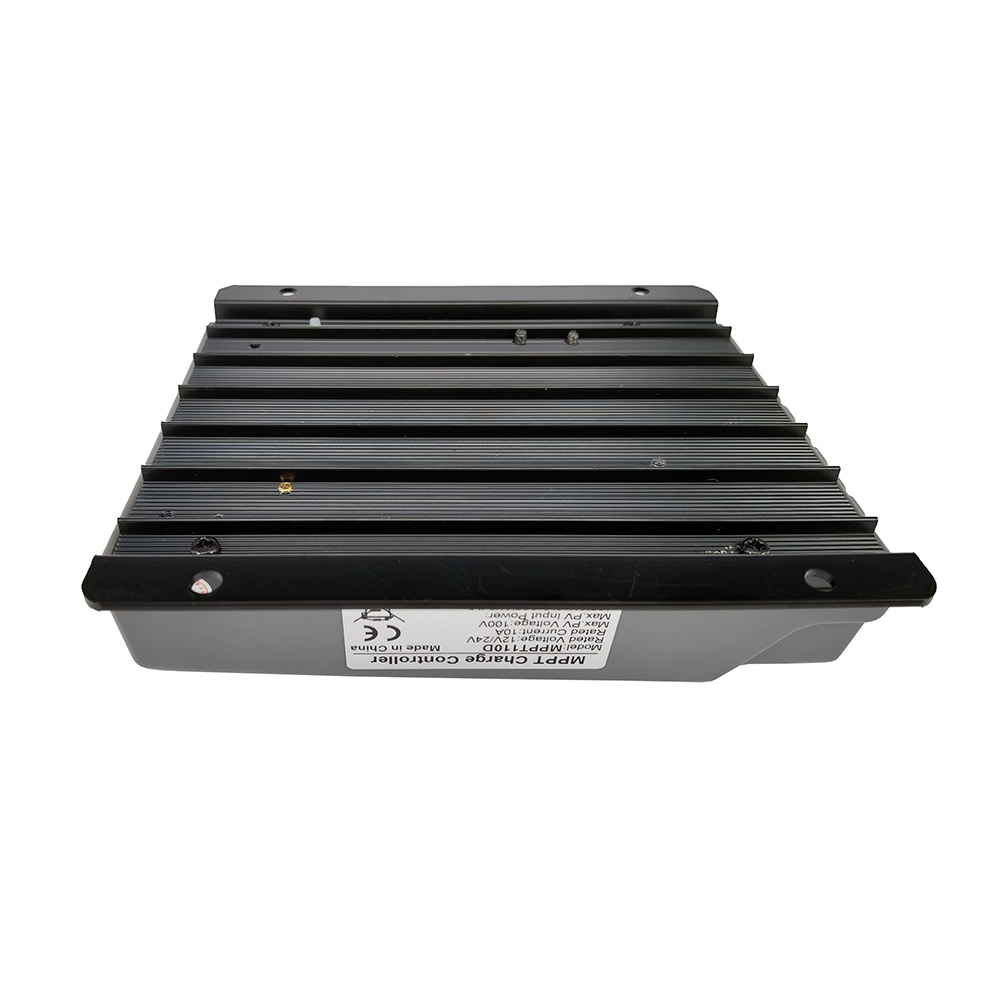

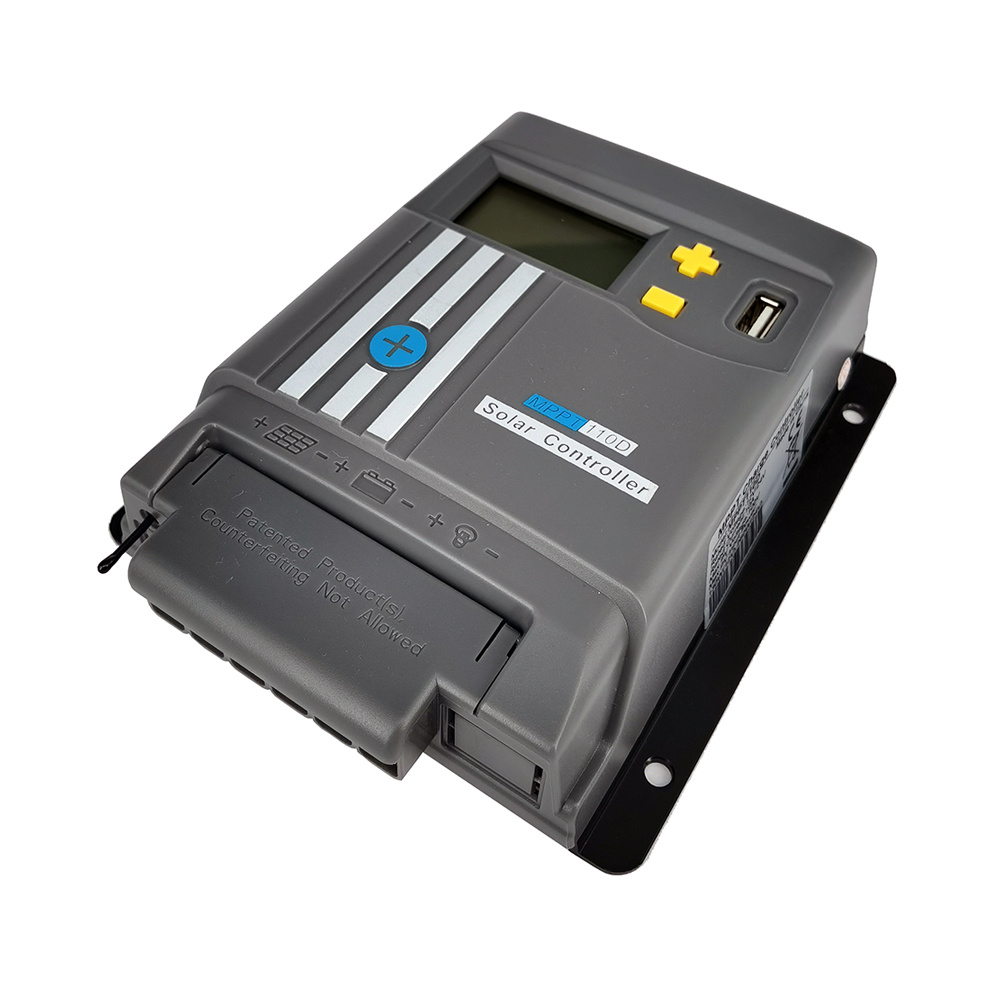

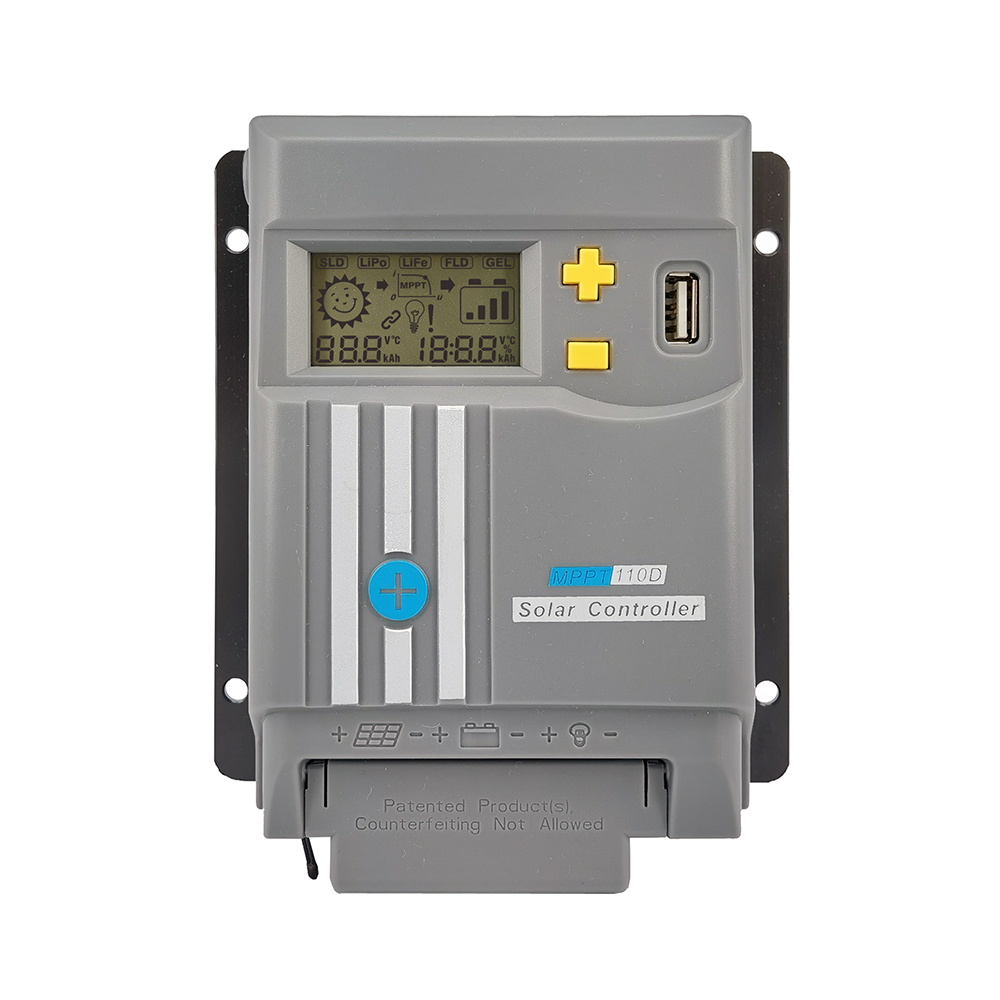

MPPT110D MPPT Solar Charge Controller 10A 12V 24V for off-grid solar power system
浏览量:
912

MPPT110D MPPT Solar Charge Controller 10A 12V 24V for off-grid solar power system

Self-created algorithm, fast and accurate locking of MPPT points, within 10 seconds, accurate to greater than 99%, MPPT peak conversion rate 98%
零售价
0.0
市场价
0.0
浏览量:
912
产品编号
MPPT110D
数量
-
+
库存:
0

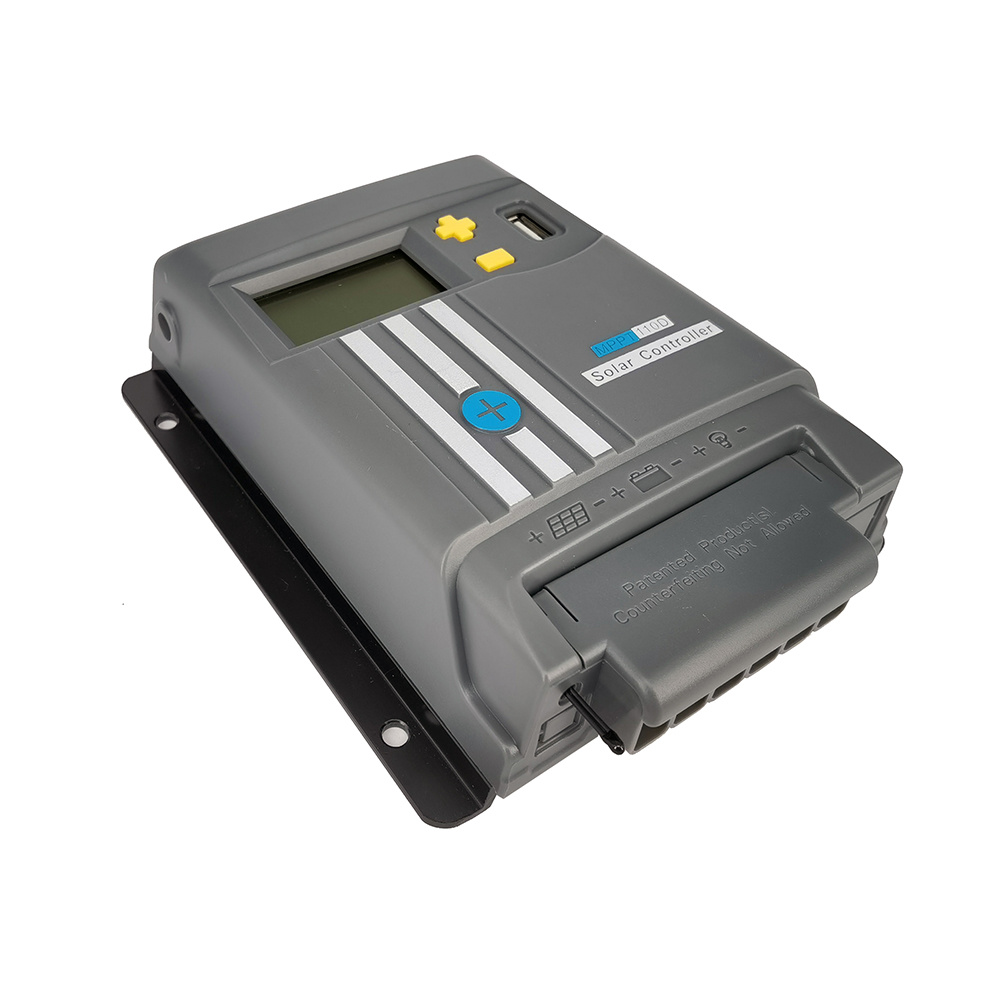

MPPT110D MPPT Solar Charge Controller 10A 12V 24V for off-grid solar power system
[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[产品参数, 参数]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]

Product Description


MPPT1 SERIES
MAXIMUM POWER POINT TRACKING SOLAR CHARGE CONTROLLER

MPPT1 series products adopts DC/DC converting technology and MCU technology.
It can adjust the working point of the solar array intelligently to make the solar array realize the maximum power output.
When the external condition changes,MPPT controller bases on the MCU theory to track the maximum working point of solar panels,this can improve the using efficiency of the solar panels and decrease the solar generating costs.
Compared with PWM solar charge controllers,MPPT improve the output efficiency of solar panel by 5% to 30%(the output increasing proportion affected by the factors such as the attribute of solar panels, environmental temperature and lighting conditions)


Key Features


1. High efficiency MPPT charging
2. MPPT efficiency>99%, Peak conversion efficiency>98%
3. 12V/24V auto work
4. PV input:100V max Multi-stages
5. Charging mode(MPPT,Absorption,Float,Equalization)
6. USB output(5V/1A)

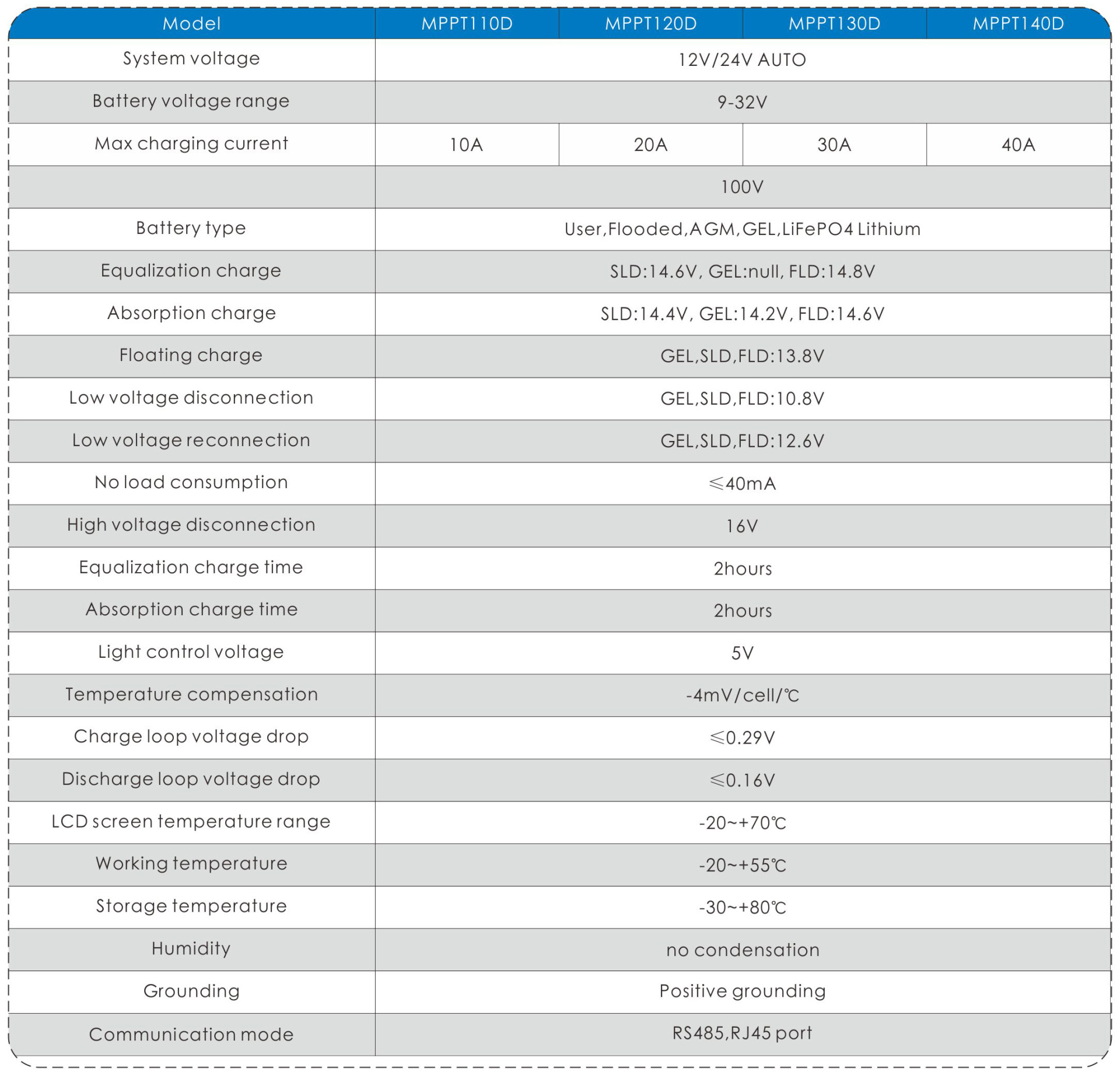

Product Paramenters

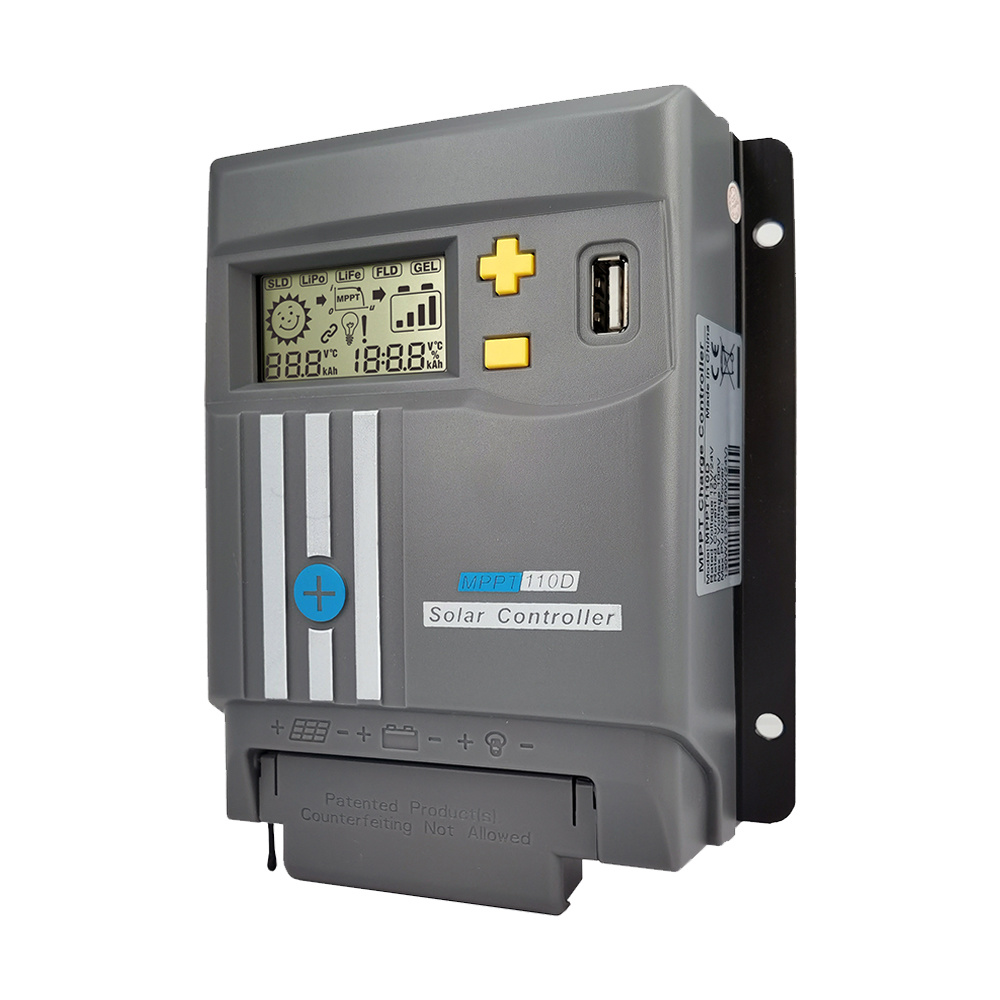

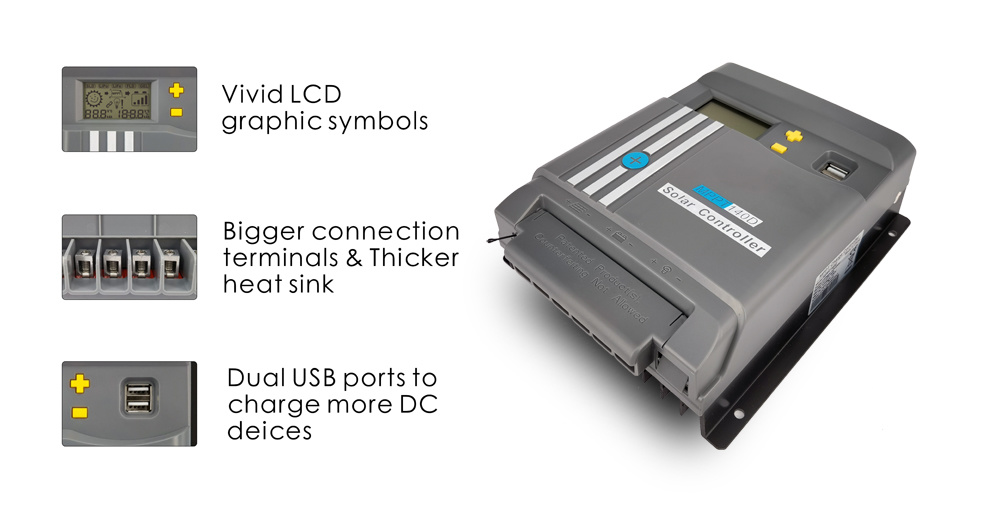

Details Images

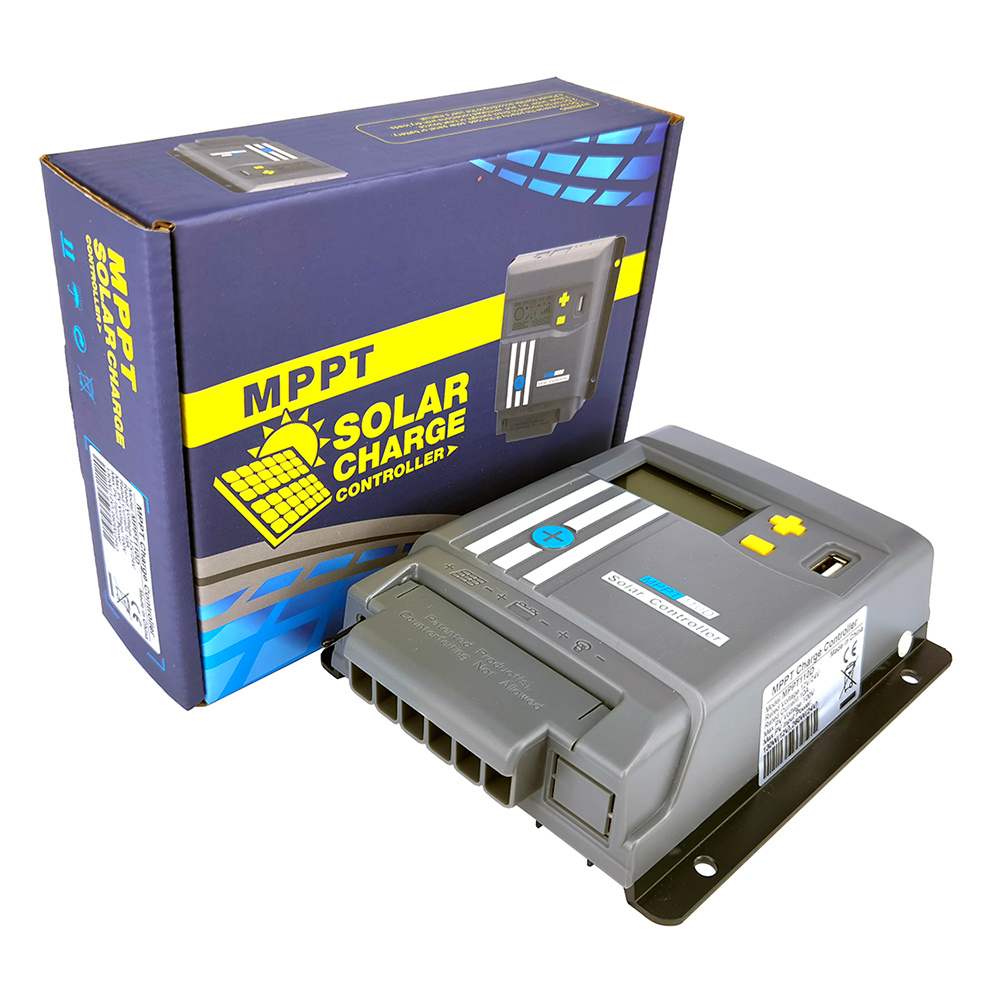

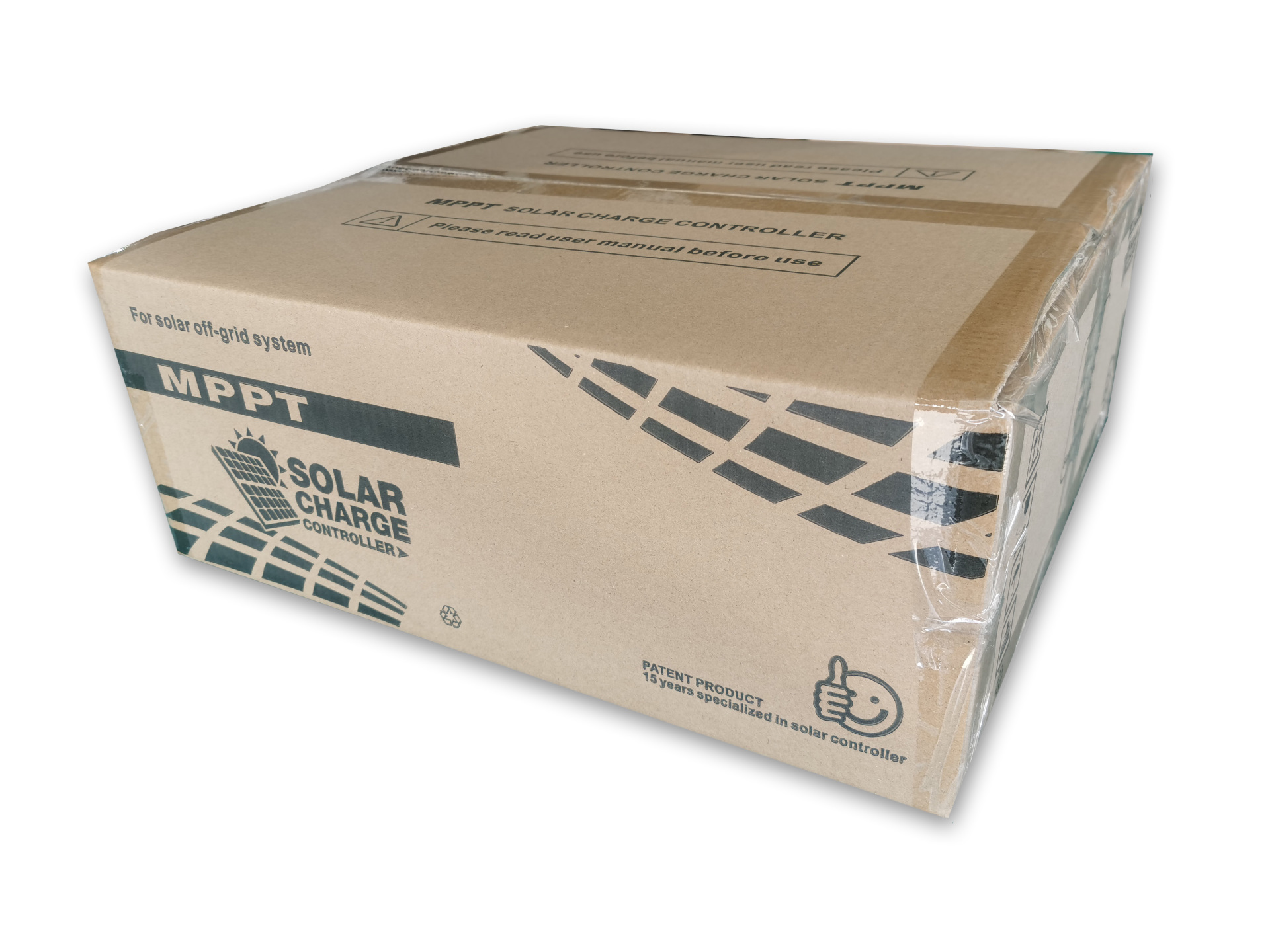

Packing & Delivery



Why Choose Us



GET A QUOTE NOW !


Wilson Zhang

Sales Manager

email: Wilson@hanfsolar.com

Tel./WhatsApp/ Wechat:
+86 15307135737

www.hanfsolar.com
