eMPPT90 Multifunctional Intelligent Maximum Power Tracking Controller mppt regulator solar charge controller
浏览量:
1000

eMPPT90 Multifunctional Intelligent Maximum Power Tracking Controller mppt regulator solar charge controller

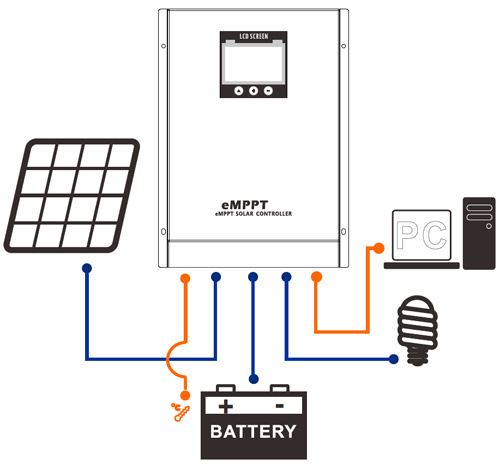

This controller is a solar charge and discharge controller with MPPT function independently developed by our company. The main topology of the controller adopts the Buck conversion circuit, and the MCU is used to intelligently adjust the operating point of the solar battery pack, so that the solar battery pack can output the maximum power under the current environmental conditions. When the working point of the solar cell group deviates from the maximum power point after the environmental conditions change, the MCU of the controller adjusts the working point of the solar cell group according to the MPPT algorithm, so that the working point of the solar cell group returns to the maximum power point. Compared with ordinary solar charge controllers, MPPT controllers can generally increase the output power of the solar battery pack by 5% to 30%. The increase in output power is affected by the characteristics of the solar battery pack, temperature and light intensity. The whole machine adopts wall-mounted installation. The wiring method uses standard wiring terminals to lead, the wiring area is larger, and the line loss is smaller.
零售价
0.0
市场价
0.0
浏览量:
1000
产品编号
eMPPT90D
数量
-
+
库存:
0
eMPPT90 Multifunctional Intelligent Maximum Power Tracking Controller mppt regulator solar charge controller
[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[[产品参数, 参数]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]]

Product Description



eMPPT SERIES
MAXIMUM POWER POINT TRACKING SOLAR CHARGE CONTROLLER

eMPPT series is an intelligent, efficient, high-speed maximum power point tracking (MPPT) solar charge controller. It can be applied in the off-grid PV system up to 150V,increase the efficiency up to 30%,at the same time,it offers a modern design and a convenient display, all at an extremely attractive price.


Key Features


DSP processors architecture ensure high speed and performance
MPPT efficiency>99%, Peak conversion efficiency>98%
12V/24V/36V/48V auto work
PV input:150Vmax
Four-stages charging mode
LCD display
external temperature sensor for accurate temperature compensation
Remote communication function-RS485 port with industrial standard MODBUS open architecture


Electronic Protections


High voltage disconnection,high voltage recovery
Low voltage disconnection,low voltage recovery
Overload protection,short circuit protection
Solar panel,battery reverse polarity protection
Reverse current protection at night
Overheat protection and short circuit protection of USB output


Displays


Vivid LCD graphic symbols
Presents working status and related parameters explicitly

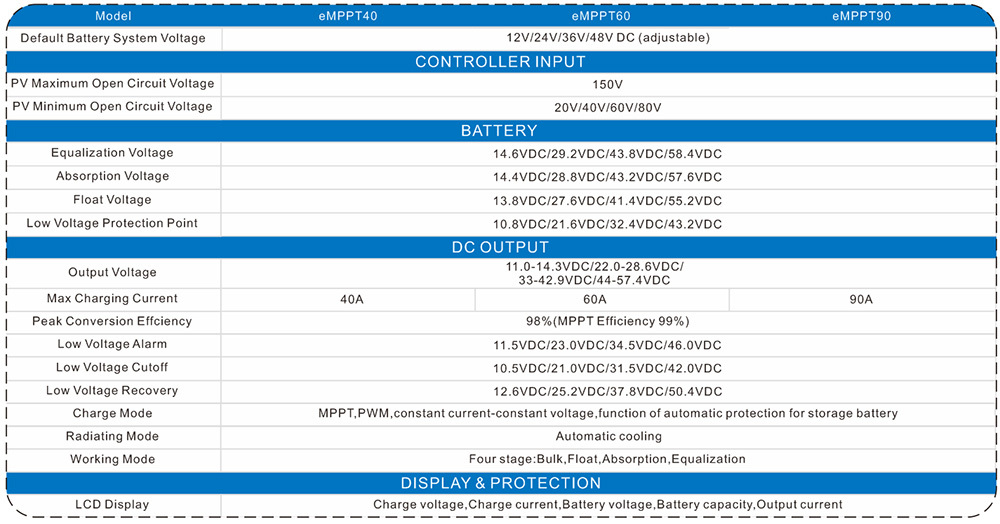

Product Paramenters
